ADAPTER 400/80 mm

SUPPORT DB-DC SHORT

Color ∕ brick red

3004

3011

3009

8004

8017

8019

7016

7024

9005

Zn

Other colors available on request

The adapter Eurovent® SUPPORT DB-DC SHORT is a mounting element of a platform grip as well as of a chimney step. It is made of hot-dip galvanized steel sheet. Offered in a set with mounting screws, in a powder-coated version.

Advantages:

Conforms to EN 516
Double protection against corrosion
Fast and easy installation
Cement and ceramic roof tiles
For roof coverings made of large-format overlapping tiles with a consumption of more than 10 pieces / m² and flat tiles laid in a scales.

Technical data Usage Documents

SUPPORT DB-DC SHORT

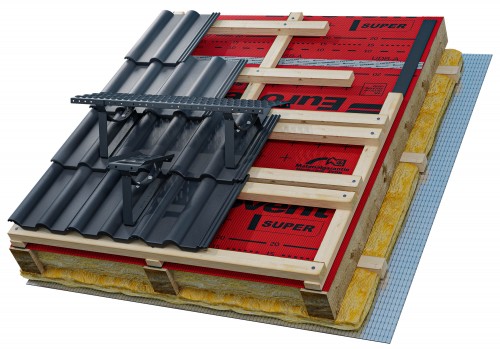

The adapter Eurovent SUPPORT DB-DC SHORT is designed for use as a roof communication element for efficient installation of the Eurovent® PLATFORM chimney platform or the Eurovent® STEP chimney step on a roofing made of profiled concrete or ceramic tiles. When installing the chimney platform, the universal grip Eurovent® GRIP must be also used.
